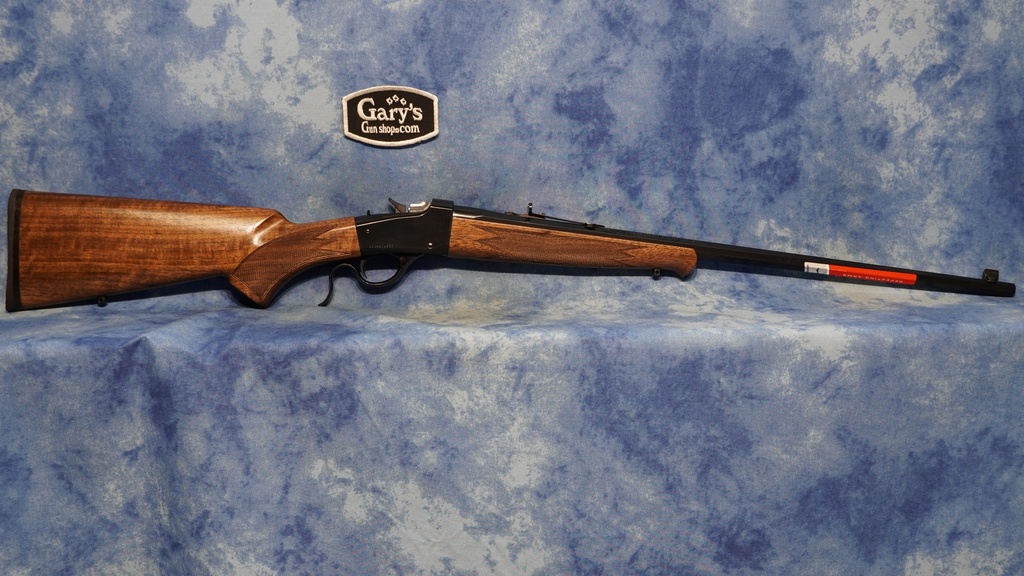

WINCHESTER 524100186 MODEL 1885 LOW WALL HUNTER 17 WSM 24" BBL

The Winchester Model 1885 Low Wall Hunter (524100186) is a single-shot falling-block rimfire rifle chambered in 17 Winchester Super Magnum, designed for varmint hunters and collectors who want a classically styled rifle built on one of John Browning's most enduring action designs.

Key Features

• Part number: 524100186
• Caliber: 17 Winchester Super Magnum (17 WSM)
• Action: Single-shot falling-block, lever-operated
• Capacity: 1 round
• Barrel: 24 inches, tapered full octagon, button-rifled, free-floating
• Barrel twist: 1:9 inches
• Barrel finish: Brushed polish blued
• Receiver: Machined steel, brushed polish blued finish
• Stock: Grade 1 American black walnut, satin finish, pistol grip configuration with Schnabel forearm
• Checkering: 22 LPI cut checkering, four-panel
• Length of pull: 13.5 inches
• Overall length: 40 inches
• Weight: 7 lbs. 8 oz.
• Sights: Gold bead front, semi-buckhorn adjustable rear
• Scope mounting: Drilled and tapped on receiver and barrel for scope base
• Trigger: Adjustable, 3.5 to 5 lb. pull range via set screw
• Butt pad: Pachmayr rubber
• Ejector: Non-selective, case deflector adjustable left or right
• Hand: Right hand

Special Features

• The falling-block action is self-cocking, meaning operating the lever both lowers the breech block for loading and cocks the external rebounding hammer automatically, eliminating a separate cocking step for follow-up shots.
• The adjustable trigger can be dialed between 3.5 and 5 pounds using a simple set screw behind the trigger blade, requiring no gunsmithing tools or specialized knowledge.
• The 24-inch button-rifled octagon barrel is threaded directly into the receiver rather than pinned, producing a tighter, more consistent barrel-to-action fit than many rimfire designs.
• An adjustable case deflector at the rear of the action can be positioned to eject spent brass to the right, to the left, or captured in a catch position, giving the shooter control over brass management in the field.
• The free-floating barrel, secured through a forend hanger, eliminates pressure point variables along the barrel channel that can shift point of impact as the barrel heats during extended shooting sessions.
• The 17 WSM cartridge generates roughly 2.5 times the downrange energy of the 17 HMR at comparable distances, with a 40 percent flatter trajectory and reduced wind drift, making it the most capable rimfire varmint cartridge currently produced.

Practical Benefits

• The Winchester Model 1885 Low Wall Hunter (524100186) in 17 WSM is ideal for open-country varmint hunters targeting ground squirrels, prairie dogs, and similar small game where shots extend well past 150 yards.
• The single-shot format encourages deliberate, precise shooting habits, making this rifle a strong choice for hunters who prefer a measured approach over high-volume fire.
• At 7 lbs. 8 oz. and 40 inches overall, the rifle balances well for field carry and shooting from a rest, a bipod, or shooting sticks across a full day of varmint hunting.
• The adjustable semi-buckhorn iron sights work out of the box, and the drilled and tapped receiver gives you a straightforward path to mounting a scope or low-power variable when you want to push the cartridge to its maximum effective range.
• The 13.5-inch length of pull fits a wide range of adult shooters comfortably in both standing and prone positions.
• Whether you are dropping ground squirrels at distance or adding a historically significant single-shot to your collection, the Winchester 1885 Low Wall Hunter gives you a rifle that rewards patience and precision every time you squeeze that trigger.

The Winchester Model 1885 Low Wall Hunter (524100186) in 17 WSM is a proven platform for dedicated varmint hunters and single-shot enthusiasts who want a solid fit between classic American craftsmanship and the performance demands of the most powerful rimfire cartridge available today.
