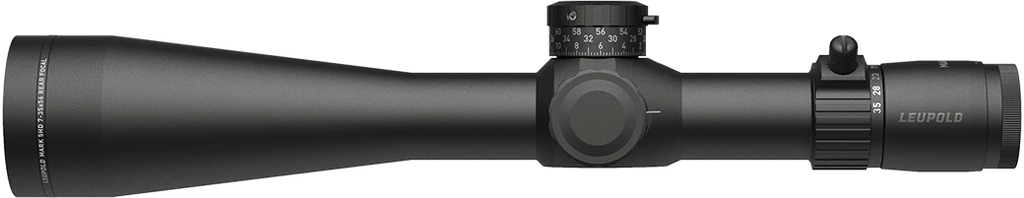

The Leupold Mark 5HD 7-35x56 M1C3 TMOA Plus riflescope (174549) is a high magnification, matte black precision optic with a large 56mm objective and TMOA Plus second focal plane reticle, built for long range shooters and competitors who need precise tracking and generous elevation travel. This Mark 5HD 7-35x56 TMOA Plus scope for long range and ELR work combines Leupold’s professional-grade optical system, M1C3 ZeroLock elevation, and a 35mm main tube in a relatively lightweight package for its class.
Key Features
- Manufacturer part number: 174549
- Magnification range: 7-35x variable power
- Objective lens diameter: 56mm
- Main tube: 35mm one-piece aluminum maintube with matte black finish
- Reticle: TMOA Plus MOA-based reticle in the second focal plane, non-illuminated
- Eye relief: Approximately 3.6 inches at 7x and 3.8 inches at 35x
- Field of view at 100 yards: About 14.7 feet at 7x and 3 feet at 35x
- Adjustment graduation: 1/4 MOA click windage and elevation
- Elevation adjustment range: 100 MOA total
- Windage adjustment range: 50 MOA total
- Elevation dial: M1C3 ZeroLock turret with up to 71.5 MOA travel in three revolutions and visual/tactile revolution indicators
- Parallax: Side focus parallax adjustment from 50 yards to infinity
- Weight: Approximately 33 ounces
- Overall length: About 15.7 inches
- Construction: Waterproof, fogproof, shockproof design built around Leupold’s professional-grade optical system
Special Features
- Professional-grade optical system delivers high light transmission, strong glare reduction, and crisp resolution that help you read mirage and spot small targets at distance.
- TMOA Plus reticle uses MOA-based hash marks for elevation and wind holds, giving you clear, structured reference points for precise holdovers and corrections.
- M1C3 ZeroLock elevation turret offers three turns of elevation with tactile indicators and a hard zero stop so you can dial confidently and return to zero without over-rotating.
- 5x zoom ratio from 7x to 35x lets you scan wider at low power, then zoom in for precise work on small targets at extreme ranges.
- Side focus parallax adjustment lets you fine tune image and reticle focus for different long range distances, improving perceived target sharpness and reducing reticle movement on target.
- High-speed power selector ring with integrated throw lever makes magnification changes faster and more controlled when you move from closer steel to far targets.
Practical Benefits
- The Leupold Mark 5HD 7-35x56 (174549) suits dedicated long range rifles and competition rigs where you regularly engage targets from mid distances out to the practical limits of modern cartridges.
- The combination of 35mm tube, 100 MOA of elevation, and the M1C3 turret gives you the adjustment travel and tracking precision needed for dialing dope on steep trajectories.
- The TMOA Plus reticle works well for shooters who prefer to work in MOA, allowing you to blend dialing elevation with fine holdover and wind holds for changing conditions.
- Despite its large objective and high magnification, the Mark 5HD 7-35x56 remains relatively light for its class, helping your precision rifle stay manageable for positional shooting and field carry.
- For precision shooters looking to stretch capable rifles to long and extreme ranges with a robust, repeatable turret system and clean MOA reticle, the Leupold Mark 5HD 7-35x56 TMOA Plus (174549) is a proven platform.
| MANUFACTURER | LEUPOLD |
| TUBE DIAMETER | 35MM |
