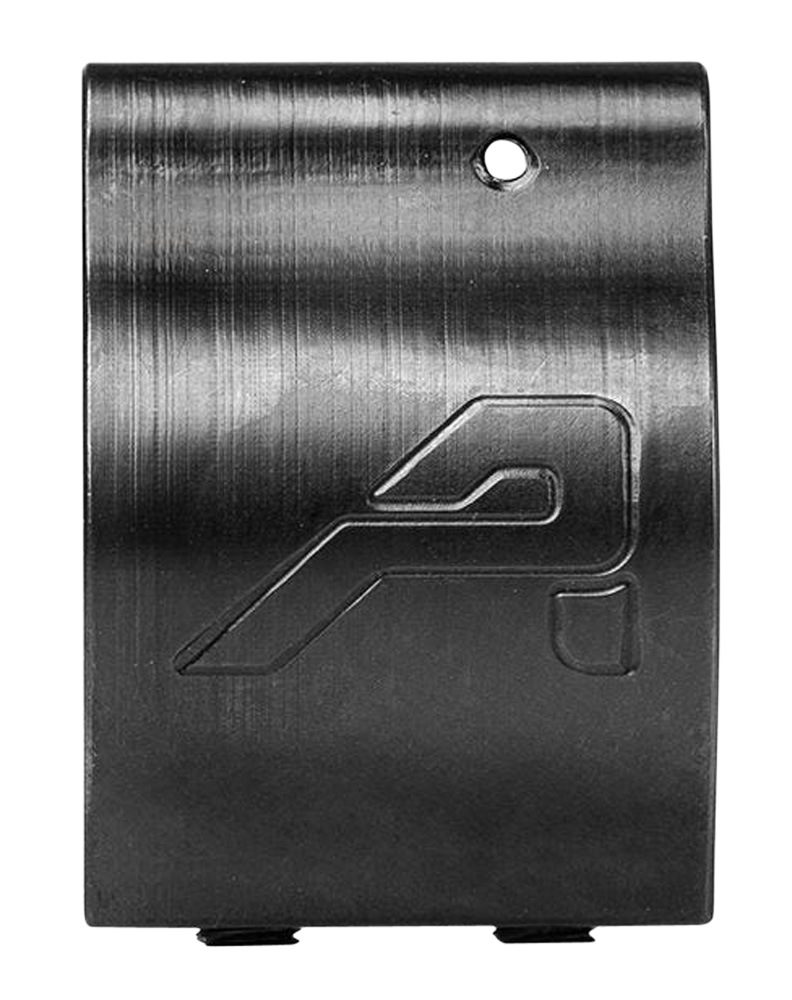

The Aero Precision Low-Profile Gas Block (APRH101206C) is a fixed low-profile gas block machined from 4140 hardened steel with a black nitride finish, precision fitted for .875 inch barrel journals on AR-15 and AR-308 platform rifles, designed to clear modern free-float handguards and deliver a consistent, leak-free gas seal for reliable cycling across all AR gas system lengths.
Key Features
- Part Number: APRH101206C
- UPC: 815421028324
- Type: Fixed low-profile gas block
- Barrel Journal Diameter: .875 inch
- Material: 4140 hardened steel
- Finish: Black nitride
- Adjustable: No, fixed design
- Weight: 1.6 oz
- Mounting Hardware: Two 10-32 x 3/16 knurled cup point set screws
- Roll Pin: Not included
- Compatible Platforms: AR-15, AR-308
- Country of Manufacture: USA
Special Features
- The low-profile form factor sits well below the bore axis with no protruding wings, towers, or rail sections, allowing it to fit cleanly inside the narrowest modern free-float handguards without clearance issues, giving builders unrestricted handguard selection regardless of internal diameter or aesthetics
- Machined from 4140 hardened steel, the same material used in quality barrel and bolt carrier group manufacture, the gas block withstands the sustained high heat, gas pressure, and mechanical stress generated at the gas port through thousands of rounds without deforming, cracking, or losing dimensional stability
- The black nitride surface treatment is a thermochemical process that diffuses nitrogen and carbon deep into the steel surface rather than simply coating it, producing a surface hardness and corrosion resistance that outlasts blued, parkerized, or phosphate-coated alternatives under the harshest conditions
- The dual 10-32 x 3/16 knurled cup point set screws bite firmly into the barrel surface when torqued, providing a secure, rotation-resistant attachment that keeps the gas port aligned and prevents the gas block from walking or shifting under repeated firing
- The fixed design eliminates the added complexity and potential failure points of an adjustable gas block, providing a set-it-and-forget-it solution that delivers consistent gas flow without requiring periodic adjustment or monitoring
Practical Benefits
- The APRH101206C is the practical gas block choice for any AR-15 or AR-308 builder installing a slim free-float handguard over a .875 inch barrel profile, where a standard front sight assembly or full-size block would prevent handguard installation or create an unsafe clearance situation
- The .875 inch bore diameter fits the most common larger-profile AR barrel diameters including heavy, bull, and government profile barrels at the gas journal, making this the correct choice for builders stepping up from the more common .750 inch journal found on lightweight barrels
- At just 1.6 oz the gas block adds virtually nothing to the overall rifle weight, making it a natural choice for weight-conscious competition builds, lightweight precision rifles, and hunting carbines where every ounce matters
- The nitride finish matches the black nitride bolt carrier groups, barrels, and handguards that are standard on modern AR builds, maintaining a consistent appearance throughout a purpose-built rifle without requiring paint or additional finishing work
The Aero Precision Low-Profile Gas Block (APRH101206C) is a dependable option for any AR-15 or AR-308 builder or upgrader who needs a properly fitted, durable, and low-profile .875 inch gas block that disappears cleanly inside a modern free-float handguard and delivers reliable gas system performance from the first round to the last.
| MANUFACTURER | AERO PRECISION |
